Generalization, Polymorphism, and Exceptions

Goals

This lab provides experience using techniques of generalization, polymorphism, and exception handling within the context of a typical problem.

A Student, Staff, and Faculty Directory

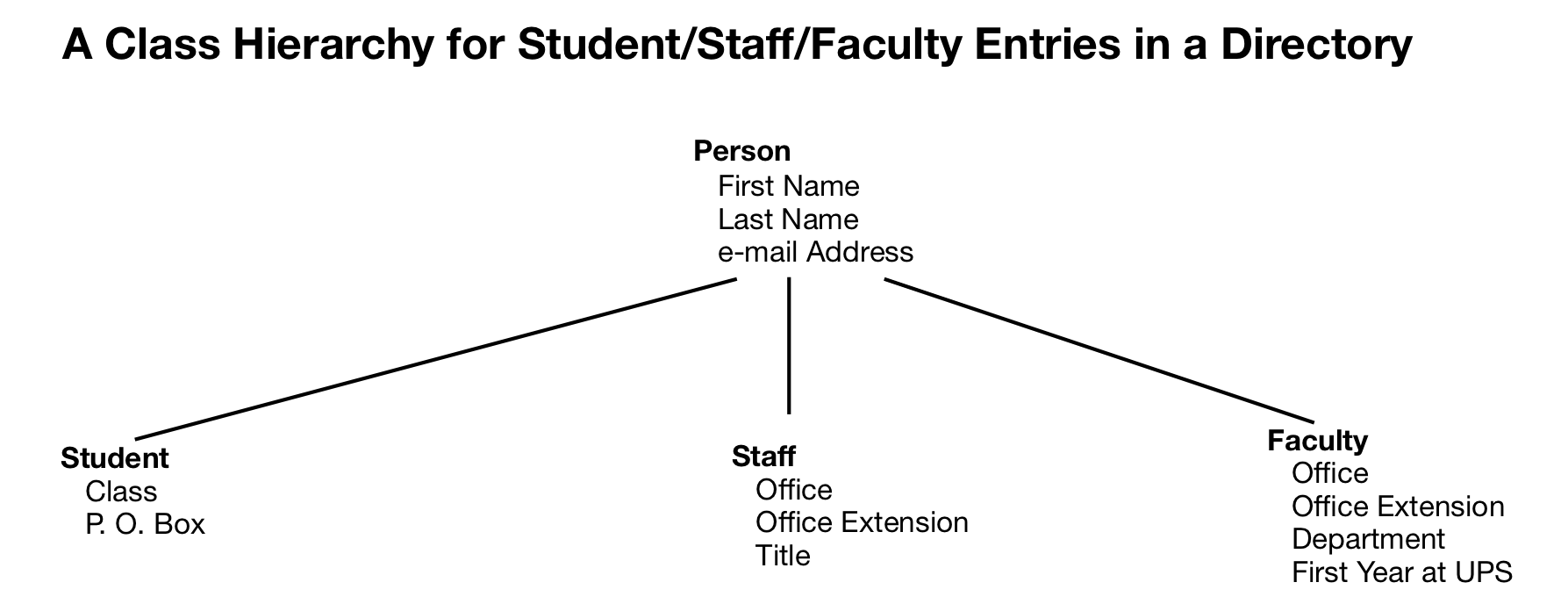

A campus directory is to contain information on students, staff, and faculty. All persons will contain a person's first name, last name, and e-mail address. However, other fields may depend upon whether an individual is a student, staff member, or faculty member. One organization of these persons is illustrated in the following diagram:

Utilizing these data fields, a directory class should contain these methods:

• Add person
• Print all persons (alphabetically by name)
• Remove an person
• Retrieve person, given the name

Additional details and an alternative hierarchy may be found in today's readings. Implementation of this class hierarchy involves classes Person, Student, and Faculty for individuals and class SchoolDirectory for the overall structure. The development of the Staff class is left as an exercise.

The Person Class

Program Person.java contains a simple version of an Person class.

1. Create a schoolDirectory package within Eclipse for use with all steps in this lab.

2. Copy Person.java to your account, compile and run it, and check that you understand how it works.

The Student Subclass

With Person defined, we can define the Student class by extending Person and adding only the few new required fields. The resulting code is Student.java

3. Copy Student.java to your account. Again, compile and run the program, and check that you understand how it works.

The Faculty Subclass

4. Copy Faculty.java to your account, run it, and review how it works.

5. In Faculty.java, the current toString method relies on Person's toString method to begin the process. Suppose, however, that we want to change the format of output, so a faculty member's department follows on the line immediately after the person's name rather than later in the listing. Modify toString in Faculty.java to make this change. DO NOT CHANGE Person in any way!

The School Directory Class

Program SchoolDirectory.java places various persons within an array. The variable maxSize indicates the actual size of the array, and a separate variable currentSize keeps tracks of how many items are actually stored within the array. We can keep adding persons to the array until currentSize equals maxSize. For additional persons, we generate a larger array (perhaps twice the size), copy the old array to the new, larger one, and then make the insertion.

6. Copy SchoolDirectory.java to your account, and review the code. Be sure you can describe how the methods add and print work. Also, be sure you understand the purpose of the method toString.

7. Add a remove method to class SchoolDirectory to delete a person with a given first and last name from the directory.

8. Extra Credit: Write a Staff class which extends Person, according to the field specification given at the start of this lab.

Adding Time-related Fields

Suppose directory information were supplemented to include time-related fields:

• An Person object will have a field yearsAtUPS
  • The string returned by Method toString is expanded to print the number of years the person has been at the University of Puget Sound
  • yearsAtUPS starts at 1
  • An addAYear method increments yearsAtUPS each time it is called.
• Faculty and Staff objects inherit yearsAtUPS and related methods without change.
• A Student has a status field of type string.
  • toString reports a student's status in addition to other information.
  • Initialization may give a student any text as status.
  • If addAYear is called for a student, then yearsAtUPS is incremented. In addition, the status field may or may not be revised:
    • If status is "First Year", then addAYear changes status to "Second Year".
    • If status is "Second Year", then addAYear changes status to Junior".
    • If status is "Junior", then addAYear changes status to "Senior".
    • If status is "Senior", then addAYear changes status to "Graduate".
    • If status is any other string, then the status field should remain unchanged.
    Note that the status field need not be directly related to the yearsAtUPS field. For example, if a local student took a course or two at UPS while in high school, the initial status of the student would be "special". If this "special" status continued during the last two years of high school, and the student then enrolled as a regular college student at UPS, the student would be conisdered to have "First Year" status but yearsAtUPS would be 3.

9. Revise Person and Student to include the time-related fields and methods described above.
   Note: Faculty and Staff do not need to be changed.

10. Add a yearUpdate method to a SchoolDirectory. This method should update each object in the directory by adding 1 year (or equivalent) to each time-related field.
    Note: This should be easy!

Exceptions and Exception Handling

The program SchoolDirectoryAlt.java uses a NoSuchElementException if a search determines that a person is not present in the directory.

11. Explain how processing within SchoolDirectoryAlt.java works when there is an attempt to locate a person in the directory when that person is not found.
