Simple Lists in Java

Introduction

The high-level concept of a linked list encompasses a flexible structure for maintaining a sequence of data elements. Unlike arrays, linked lists can be expanded or compacted as elements are added or deleted, respectively. Further, elements on a list can be reordered with little overhead. Altogether, linked lists provide a powerful and convenient alternative to array storage for a range of applications.

This reading introduces the concept of a linked list and then begins a discussion of a pointer- or reference-based implementation of this structure. The next reading considers common, additional operations for manipulating linked lists.

Acknowledgment

The opening parts of this reading are edited from "Computer Science 2: Principles of Software Engineering, Data Types, and Algorithms" by Henry M. Walker, Scott, Foresman and Company, 1989, and is used with permission of the copyright holder.

The Concept of a List

The concept of a linked-list structure may be motivated by considering how we might maintain lists containing tasks we need to do. Initially we might write down names of tasks as we think of them. Then we might number these tasks in the order in which we plan to do them. As we think of additional work to do, we might write down each new task (perhaps the the bottom of the paper) and then revise the numbering to indicate the order for doing the work. Such a list is shown at the right.

The sample list at the right suggests several important characteristics of lists. On a list, one task (Go Swimming) is designated as the first item, and another (Do Homework) is the last. The ordering of the list is specified by the numbering, not by the physical location of the items. For example, Do Homework appears on the first line in the example, but that task will be done last in the work schedule. On the other hand, Go Swimming appears on the second list of the list, but it will be done first.

Parenthesis Notation

Although numbered lists are convenient forms for specifying elements and their ordering when writing on paper, these multi-line statements can be somewhat awkward within a program. For this reason, several programming languages use a type of parenthesized notation for lists.

• In the Scheme and LISP programming languages, lists are represented by placing elements in round parentheses ( ) and separated by spaces. For example, in both Scheme and LISP, the above list of tasks (without numbers) might be represented as

( "Go Swimming" "Buy Birthday Present" "Clean Desk" "Mow Lawn" "Do Homework" )

• In the ML programming language, lists are formed from by placing elements with square brackets [ ] and separated by commas. Thus, the numbered list above might be represented (without numbers) as

[ "Go Swimming" , "Buy Birthday Present" , "Clean Desk" , "Mow Lawn" , "Do Homework" ]

Such languages vary regarding the types of data stored on a list. In Scheme or LISP, a single list can hold data of multiple types:

( "string" 1 "another string" 3.7 5 )

In Scheme or LISP, parts of a list can even be another list. In the following example, the main list has four components: a string, a list of five integers, a real number, and an empty list.

( "string data" ( 3 1 4 1 5 ) 2.71828 ( ) )

In the ML programming language, elements of a list must have the same type. For example, the following shows a list of integers, whereas the above ML example illustrated a list of strings.

[ 12 , 345 , 6 , 78 , 90 ]

Since ML requires all elements in a list to have the same type, the above Scheme/LISP example (with a mixture of a string, two lists, and a real number) would not be allowed in ML.

Box-and-pointer Diagrams

Several features of the original task list, given at the start of this reading, are highlighted in the figure on the right, where the list is shown in a different form — one that deemphasizes the physical location of the items while stressing their order. With this structure, each item on the list can be reached starting with the first item and following the pointers or references from one item to the next. This description of a list as a collection of boxes and associated arrows is called a box-and-pointer diagram.

In the figure with a List of Tasks using Pointers or References, separate tasks are not written on different lines on paper; rather, each list item is represented as a box with two parts:

• the name of the task for the list entry,

• a place to indicate which box is next (in the diagram, we indicate this next box with an arrow).

In this representation, the Task Name includes alphabetical characters — data of type String. The arrows for the Next part of the box, represent an address or reference. As with the references we have encountered previously, arrows do not contain the task names; instead arrows point to boxes, and the boxes contain the task names.

Three additional characteristics of lists, as suggested by the figure, also deserve mention.

• A special reference is used to specify the location of the initial item on the list. In the diagram, we used a name First to indicate the start of the list.

• A special symbol indicates the last element on the list, because the last box does not have an arrow pointing onward. In the diagram, we drew a diagonal line through the Next part of the box for the last item, Do Homework. As we shall see, this diagonal line will translate to a null value in Java.

• In the figure, a box contains both a task name and an arrow (or pointer or reference) that specifies another box, As a structure with two components, a box translates to a struct in C. (More about this type of struct shortly.)

Translating between Parenthesis Notation and Box-and-Pointer Diagrams

When translating between Parenthesis Notation and Box-and-Pointer Diagrams, a primary consideration is the number of items on the list.

Example: The List (d c b a)

The list (d c b a) contains four list elements, so the corresponding box-and-pointer diagram will have four boxes:

Within this sequence of boxes,

• d is the first item on the list (d c b a), so d should be the data in the first box.

• c is the second item on the list, so c should be the data in the second box.

• b and a similarly should be placed in the data fields for the third and fourth boxes.

Put together, the following box-and-pointer diagram must correspond to the list (d c b a).

Example The List ((a) b (c d) e)

The list ((a) b (c d) e) has 4 elements (i.e., the list (a), the item b, the list (c d) and the item e). Thus, the starting point for describing this list as a box-and-pointer diagram is to draw a list with four boxes, as shown above.

• The list (a) is a list with one item, so its box-and-pointer diagram contains just one box with a as its data field.

• The item b can be placed directly in the second box for ((a) b (c d) e).

• The list (c d) is a list with two items, so its box-and-pointer diagram must contain two boxes — for c and d.

• As with the item b, the item e can be placed directly in the fourth box for ((a) b (c d) e).

The resulting box-and-pointer diagram for ((a) b (c d) e) follows:

Example: A List with One Element — a null List

A list with no elements is the null list, represented in parenthesis notation as ( ). To clarify this concept, consider the list ( ( ) ).

• ( ( ) ) is a list with one element — the null list, so ( ( ) ) must be represented by a box-and-diagram diagram with one box.

• The data field in the one box consists of a list ( ) with no elements, A list with no elements must have no boxes, so it must be represented by a null pointer or reference.

Putting these pieces together, the box-and-pointer diagram for ( ( ) ) is:

Here, the main list has one item, represented by a single box (with a line through the next field. Also, the data field represents a null list (a null reference to an empty list of no boxes), so the data field also has a line through it.

Head/car/hd/getData, Tail/cdr/tl/getNext, cons

Since lists are naturally represented by boxes with pointers or references, much list processing can be translated to operations to construct the box or to access fields of a box. Consider a simple box

As we shall shortly, much list processing (i.e., work with box-and-pointer diagrams) normally reduces to three basic operations.

• A constructor function constructs a box, given a data value and an existing list. (Note: In much literature and some languages, this contructor function for a box structure is called cons.)

• Given a box, the head function returns the data field or string.

• The tail function returns an arrow to the next box.

List Construction

When constructing a list, a primary step involves three basic steps:

1. building a box,

2. placing data in the data field, and

3. recording in the next field what box comes after the current box in the list.

For example, the list (a) is constructed by constructing a box, placing a in the data field, and setting the next field to null. This work is accomplished by the operation (cons a ()), which yields the following diagram.

Here, the placement of a in the data field indicates that this is the head of the list. The diagonal line through the right half of the rectangle indicates that nothing comes later in this list. In summary, cons (a ()) gives the list (a).

Next, consider the list cons (b (a)) or (b a). Here, we draw another rectangle, where the head specifies b and the tail points to the representation of (a) that we already have seen. The result is:

Similarly, the list (d c b a) is constructed as

(cons (d cons (c cons (b (cons (a ()))))

and would be drawn as follows:

In general, an entire list is obtained through a sequence of cons operations, in which each box is drawn, data are placed in the data or name field, and a pointer to the next box is placed in the next field.

List Traversals

Given a list, the head operation allows a program to access data in a box, and the tail operations the program to locate the next box in the list.

Example: Moving within List (dbca)

To illustrate, suppose the variable listDCBA represents the list (d c b a) above.

Within this context,

• head(listDCBA) returns the data element d — the data in the first box within the list.

• tail(listDCBA) designates the list coming after the first box — the list (c b a)

• head(tail(listDCBA)) returns the data element in the list starting after the first box (— the data element of the list (c b a).

• tail(tail(listDCBA)) returns the list coming after the (c b a) list — that is, the list (b a).

Example: Printing a List

As a second example, consider the problem of printing the elements on a list — perhaps printing a list using parenthesis notation.

To print all items on a list, we need a separate variable listPtr that starts at the first box and moves progressively from box to box. Since we want listDCBA to maintain its record of where the list starts, the listDCBA variable should not be changed while printing, so we use the separate variable listPtr to keep track of where we are when printing.

With this general background, the task of printing elements on a list is reasonably short. The following pseudocode ignores details of how to print, but otherwise provides a good outline of how to print the elements of a list.

System.out.print ("( ");

listPtr = listDCBA
while (listPtr != null)
{

   System.out.print (listPtr.getData() + " ");

   listPtr = listPtr.getNext();
}

System.out.print\n (")");

Representing a Box-and-Pointer in Java

In computer science, box-and-pointer representation is a primary mechanism used to describe lists. An implementation of lists in C typically utilizes this graphical perspective and involves three main elements:

• a struct listNode which implements a box-and-pointer unit,
• a first pointer that indicates the location of the first node in a list, and
• a collection of operations which aid in the processing of the box-and-pointer nodes.

A typical listNode contains two elements — one for data and the other to identify the next node on a list. Since Java requires that we declare the type of data fields, we must tailor the data to the application at hand. For the remainder of this reading, we assume the data will be a string. The following declarations capture these elements as the first part of a ListNode class.

public class ListNode {

    protected int data;      // the information to be stored in the node
    protected ListNode next;    // the pointer to the next ListNode

    // Constructors
    public ListNode (int startingData) {
        data = startingData;
        next = null;
    }

    public ListNode (int startingData, ListNode nextNode) {
        data = startingData;
        next = nextNode;
    }

    //getters and setters follow

To clarify these lines, a ListNode is a structure with data and a next field, together with constructors and getters and setters.

Some Designs for Simple List

While ListNode provides appropriate support to build lists that implement box-and-pointer representations, the design of a list may combine these listNodes in one of several ways. Here are some basic issues:

• List functions, such as cons, head, tail, take lists as parameters and return new lists or data. When implementing these functions in Java, two main choices are possible:

  • should functions, such as cons and tail, reference an existing list, or
  • should operations return new and updated lists?

• When modifying a list, perhaps with cons or tail, should there be a connection between the old list and the new one; that is,

  • should an operation give rise to a completely new structure, or
  • should an operation reuse nodes from an earlier structure when possible?

To clarify this second point, suppose x represents the list (b c), and suppose y is defined as (cons 'a x)).

In summary, we can consider y to be the list (a b c). The following figure shows two possible structures that could result:

In the first option, the nodes of the original list are copied, and thus are explicitly distinct from those in the new list. In the second option, a new node is created for the cons node, a new value is added within that node, but the next part of that list refers to the old list.

For the example shown, both options may be reasonable. However, suppose we now change the second element of x from c to d. (That is, the new x is the list (b d).) In the first option, y is not affected, while in the new approach y becomes the list (a b d). Since y refers to x when nodes are reused, any change to x also affects y. This may or may not be the desired result of changing x.

Overall both approaches have some advantages in certain cases. However, the first approach requires considerable overhead to duplicate nodes. Furthermore, in a purely functional context, lists are not altered during processing. In such a context, we could reuse nodes without fear of altering other lists unexpectedly, as old lists are never changed. Both of these observations explain why Scheme and LISP uses the second approach — reusing nodes when possible. Other languages might take another approach.

Throughout the rest of this course, we use Alternative 2, reusing ListNodes when possible to make new or modified nodes.

Implementing Simple List Operations in Java

Before considering specific details of the Java methods, we review some elements of Java syntax, based on the box-and-pointer representation for the list (a b c).

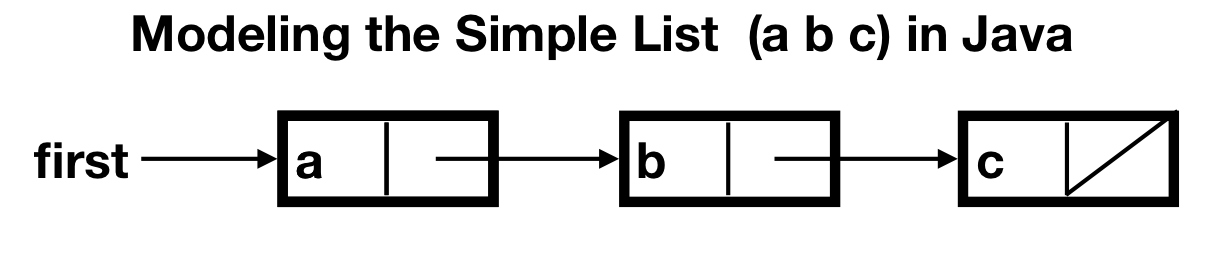

In this diagram, first is a variable that references a ListNode:

ListNode first;

Once declared, first is a reference to a ListNode, Within this ListNode, first.data yields the data field within the ListNode, and first.next yields the next field.

With this notation, we now review a SimpleList.java class that utilizes the ListNode class with its data and next fields.

listPrint

Given a constructed list, we can print the list data by atarting at the first node and proceeding node-by-node. For this, we need a temporary variable listPtr that starts at the beginning of a list and then progresses node-by-node until the end. By convention in Java, a pointer or reference that does not specify any node is called null. Also, given one position in the list, the next node is obtained by looking in the next field. Putting these details together, the main structure of a printing loop is:

ListType listPtr = list;

while (listPtr != null)
  {
      /* printing details go here */
      listPtr = listPtr.getNext();
}

If we are to print results in parenthsis notation, we should enclose an entire list in parentheses and separate successive list elements by a space. These details require a little care.

Inialization

Before processing begins, a list has no nodes, so it would be assigned the value null:

first = null;

Full Program

These definitions and methods combine to give program SimpleList.java.
